Sectional Garage Door Openers

All of our openers are engineered to the highest standards ensuring easy operation, optimum performance, long life and peace of mind.

Flush Mount Sectional Door
Simply Safer

NOTE: For information regarding any discontinued ranges of openers, including legacy models and available replacement options, please visit our dedicated page at Discontinued Products Information.

Steel-Line’s Range of
Sectional Garage Door Openers

SD1000 Pro Sectional Door Opener

Take your garage to the next level with the new SD1000 Pro Sectional Door motor giving you smoother, more reliable operation for even the heaviest doors.

  • Max garage door size: 15m2
  • Max door weight up to 150kg
  • Max peak pulling force: 1000N
  • Rolling code technology
  • 433.92 MHz transmitter frequency
  • Soft start / soft close
  • Adjustable operating speed
  • Belt drive
  • Easy set up & remote coding
  • Maintenance alarm
  • Reversing system complies with AS/NZS 60335-2-95
  • Built in F-linX Wi-Fi
  • Wireless PE Beam compatibility
  • Wireless E-Lock compatibility
  • E-Door Connect compatibility
  • 10 year motor warranty
Download Brochure

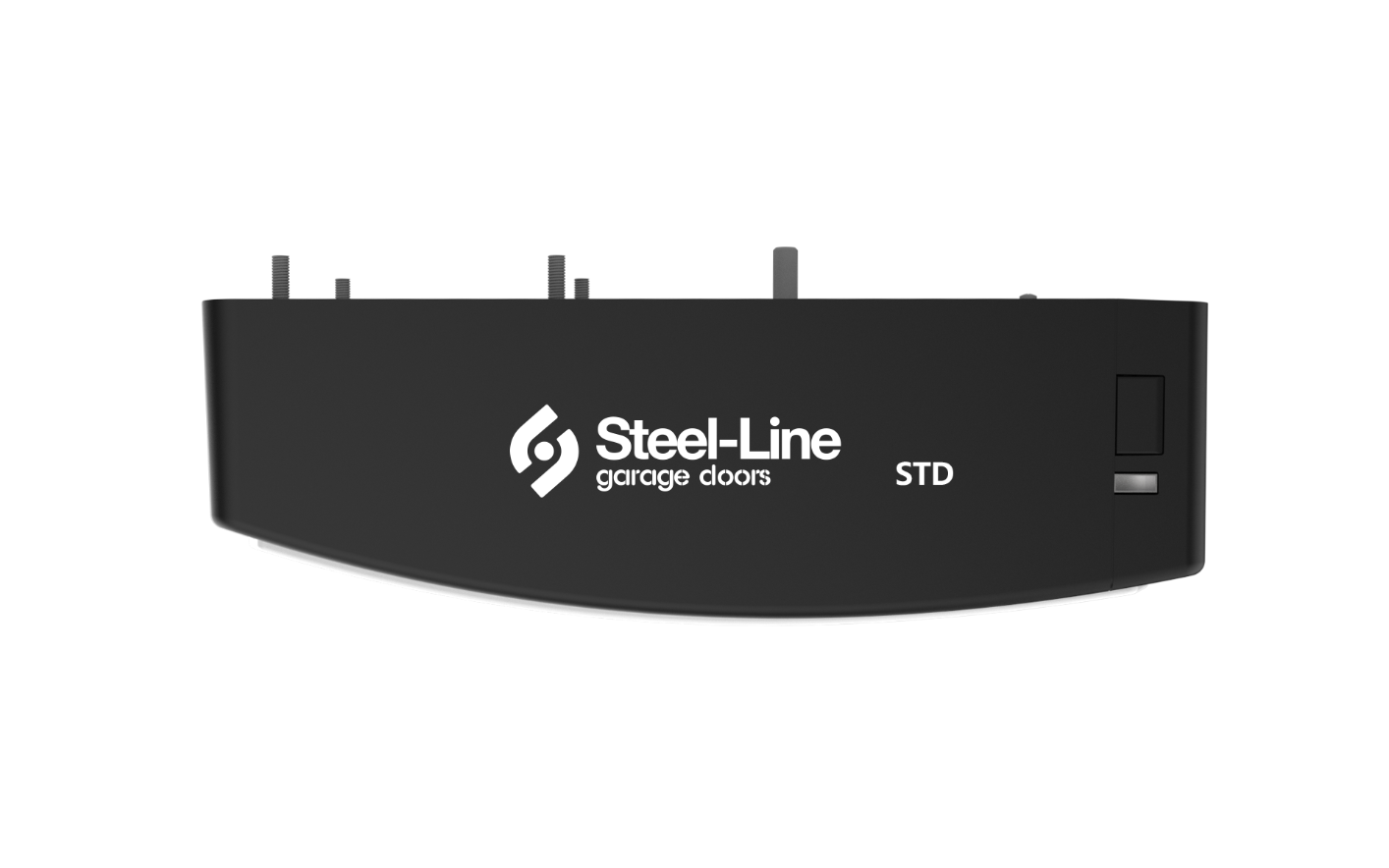

SD1000 Std Sectional Door Opener

The SD1000 Std has been engineered to the highest standard and utilises proven technology coupled with high quality features as standard to ensure reliable, safe and quiet operating performance year after year.

  • Max garage door size: 15m2
  • Max door weight up to 150kg
  • Max peak pulling force: 1000N
  • Rolling code technology
  • 433.92 MHz transmitter frequency
  • Soft start / soft close
  • Adjustable operating speed
  • Belt drive
  • Easy set up & remote coding
  • Maintenance alarm
  • Reversing system complies with AS/ NZS 60335-2-95
  • 5 year motor warranty
Download Brochure
SD1500 Pro Sectional Door Opener

Upgrade your garage experience with the SD1500 Pro Sectional Door Motor. With power increased from 800N to 1500N, it handles even the heaviest doors with ease, ensuring quieter, smoother, and more dependable operation every day.

  • Max garage door size: 23m2
  • Max door weight up to 250kg
  • Max peak pulling force: 1500N
  • Rolling code technology
  • 433.92 MHz transmitter frequency
  • Soft start / soft close
  • Adjustable operating speed
  • Belt drive up to 210 Kgs
  • Chain drive from 210-250 Kgs
  • Easy set up & remote coding
  • Maintenance alarm
  • Reversing system complies with AS/NZS 60335-2-95
  • Built in F-linX Wi-Fi
  • Wireless PE Beam compatibility
  • Wireless E-Lock compatibility
  • E-Door Connect compatibility
  • 7 year motor warranty
Download Brochure

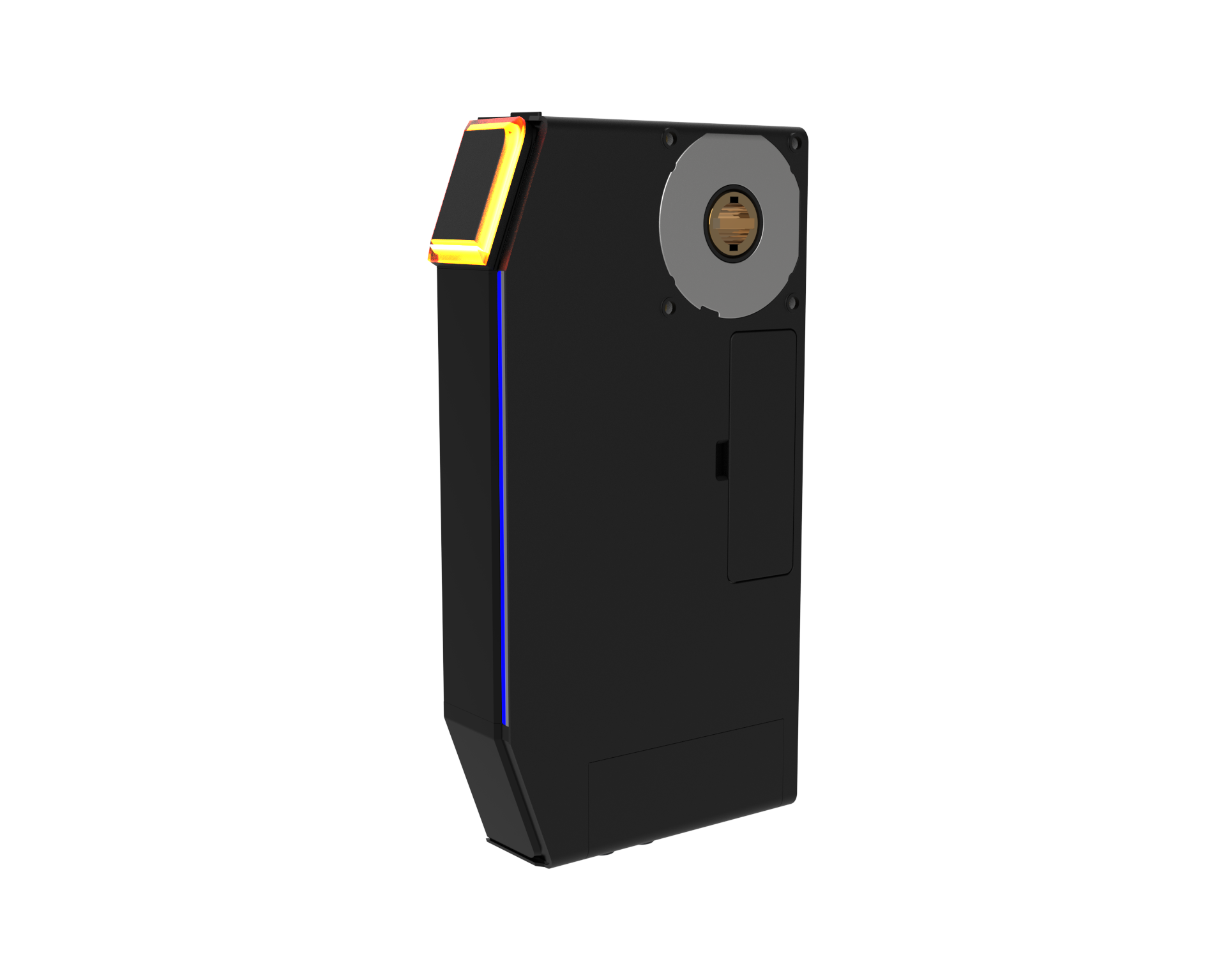

Multi Drive 1500 Pro Sectional Door Opener

Take your garage to the next level with the new Multi Drive 1500 Pro Sectional Door motor. With a powerful 1500N pulling force, you’ll enjoy a smoother, more reliable operation for even the heaviest doors.

  • Max garage door size: 18m2
  • Max door weight up to 165kg
  • Max peak pulling force: 1500N
  • Rolling code technology
  • 433.92 MHz transmitter frequency
  • Soft start / soft close
  • Adjustable operating speed
  • Side mounted installation as standard
  • For ceiling / rail mounted option, belt drive adapter and rail sold separately
  • Easy set up & remote coding
  • Maintenance alarm
  • Reversing system complies with AS/ NZS 60335-2-95
  • Built in F-linX Wi-Fi
  • Wireless PE Beams and wireless E-Lock included
  • 10 year motor warranty
Download Brochure

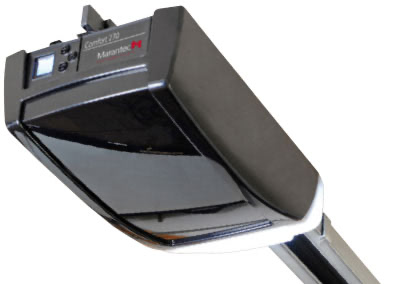

Marantec Comfort 270 Sectional Door Opener

The Comfort 270 has been engineered and manufactured in Germany to the highest standard to deliver optimum performance, and includes quality features as standard to ensure reliable, safe and quiet operating performance year after year.

  • 24V DC motor type
  • Electrical Input: 240V, 50Hz
  • Max door weight up to 165kg
  • One piece C-rail with belt drive
  • 433 MHz transmitter frequency
  • Courtesy light: LED
  • Min. headroom: 50mm more than minimum headroom required for door
  • Push & pull force:  750N
  • Door travel speed: Max. 160mm/s
  • Opening time: Approx 14 sec (door specific)
  • 7 year motor warranty,  7 year electronics warranty

Note: This product is not available in WA

Download Brochure
Marantec Comfort 280 Sectional Door Opener

The Comfort 280 has been engineered and manufactured in Germany to the highest standard to deliver optimum performance, and includes quality features as standard to ensure reliable, safe and quiet operating performance year after year.

  • 24V DC motor typ
  • Electrical Input: 240V, 50Hz
  • Max door weight up to 200kg
  • One piece C-rail with belt drive
  • 433 MHz transmitter frequency
  • Courtesy light: LED
  • Min. headroom: 50mm more than minimum headroom required for door
  • Push & pull force:  1,000N
  • Door travel speed: Max. 160mm/s
  • Opening time: Approx 14 sec (door specific)
  • 7 year motor warranty,  7 year electronics warranty

Note: This product is not available in WA

Download Brochure

Quality Features That
Will Stand the Test of Time

Fit your Sectional Garage Door with an automatic opener for hassle free entry and exit from your garage. All of our openers are engineered to the highest standards ensuring easy operation, optimum performance, long life and peace of mind.

Soft Start and Stop Function

This feature is designed to allow for a quiet and smooth garage door operation, which is important when the garage is located close to bedrooms or living areas.

Auto Reverse System

For added safety, each installation comes with this automated feature that causes the garage door to immediately stop and reverse when it comes into contact with an object.

Auto Sensing Force

During operation the force required is constantly monitored and adjusted to ensure economical operation and reduced wear and tear.

Remote Handsets

The key ring remote handsets are small and convenient with the ability to operate up to four garage doors or gates from the one unit. A must have for every set of keys in the house.

Wireless Wall Button

Can be installed near an internal access door to your garage giving you greater convenience to open and close your garage door.

Digital Limit System

Equipped with digital limit system for ease of programming during installation.

Manual Release

In case of power failure you can simply activate the manual release to open your garage door.

Courtesy Light

This courtesy light is the most convenient way to navigate through your car. The light automatically switches on and off as you open and close your garage door.

Quality and Adaptability

Our garage door openers are manufactured from quality composite materials and have been engineered to the highest standard. They can also be fitted to most popular brands of Sectional Garage Doors with accessories to suit your requirements.

Automatic Garage Door Opener FAQs

Have a question that isn‘t answered here? Click here to send us a message and ask us...

What features are included with Steel-Line garage door openers?

Key features include:

  • Soft start and stop functionality for smooth operation
  • Auto reverse and auto sensing force for safety and efficiency
  • Courtesy LED lights for convenience
  • Digital limit systems for easy programming during installation
  • Remote handsets that can control multiple doors

Are the openers compatible with smart devices?

Yes, many openers including the SD1000 Pro, RD1000 Pro and RD1500 Pro models, are compatible with the E-Door Connect Smart Garage Door Controller, enabling remote operation via smart devices.

How do I choose the right opener for my garage?

The right opener depends on your garage door type, size, and specific requirements. Steel-Line offers detailed specifications for each opener model, including the maximum door size, motor strength, and compatibility with different door types.
